Included:

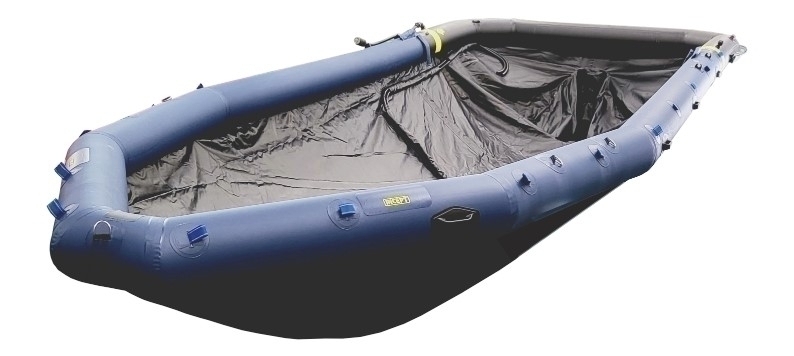

FD19(X)D Inflatable Dry dock
FD19(X)D Accessory box
Gate Pipes and Weights
12v Inflator + cables
12v Bilge pumps
Mooring ropes
Installation and Operation manual
| Maximum hull measurements @200mm above waterline | FAB Dock Overall Measurements | ||||||||
| Monohull Model | Length | Beam | Draft | Straight Side | Swim Platform | Length | Beam | Gate Draft | |
| FD19 Stern Drive | 5,800 | 2,300 | 500 | 3,600 | 850 | 7,780 | 2,980 | 2,050 | |
| FD19 Wide Stern Drive | 5,800 | 2,650 | 500 | 3,800 | 850 | 7,780 | 3,330 | 2,250 | |
Q: How long can i leave my boat within the dock?
A: We recommend that there is a visual check at least once a month, and a full water exchange at least once every 3 months to keep any slime growth to a minimum
Q: What happens if it rains after we have left the marina?
A: Our automated bilge pumping system will check for water levels within the dock and automatically pump out any water that may have entered in your absence.
Q: What are the Dry Dock materials?
Main Inflatable Tube : Dark Blue PVC/PU Alloy 1080gsm
Inflatable Gate: Black PVC/PU Alloy 1300gsm
Floor Membrane: (Front) Black PVC 1200gs / (Gate) Black PVC/PU Alloy 1300gsm
Q: Can this be used as a Wet Dock?
A: Yes the dock can be used without pumping out the water after berthing your boat. The water contained within the dock will rapidly loose oxygen and growth on you hull will be prevented. Some slime growth is expected and this should come off whist your boat is in use on the water.
